Experiment:
 Volumetric Video using a structured light sensor
Objective:  We need to prepare for a time when our audience will expect to be able to view all content in 3D. This is currently among the most promising ways to capture volumetric video
Dune: volumetric

A-Frame.io Component

10/31/17 | 12 hrs

Work:

We're starting to use DepthKit for some experimental production. Right now it's easiest to distribute using Unity (See Volumetric Video in Unity), but it would be great to have a more open and accessible WebVR toolkit for the inclusion of volumetric video.

We've taken a first pass at writing an A-Frame component based on DepthKit.js.

DepthKitJS Tutorial from Scatter on Vimeo.

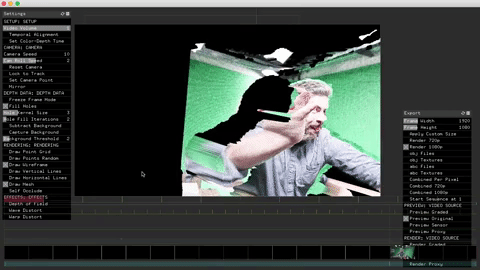

Here's a demo our A-Frame Component in action:



Follow the project or contribute on GitHub.

Next Steps

  • Add play and pause triggers to the component
  • Examine other shader options
  • Clean up and better comment the code
  • Share on NPM & aFrame

Feedback

DepthKit Calibration & 1st Shoot

7/3/17 | 16 hrs

Work:

We're using DepthKit here with a Kinect V2.

The first steps involve calibrating the software for our particular lenses. You need a stiff board with a checkerboard pattern.

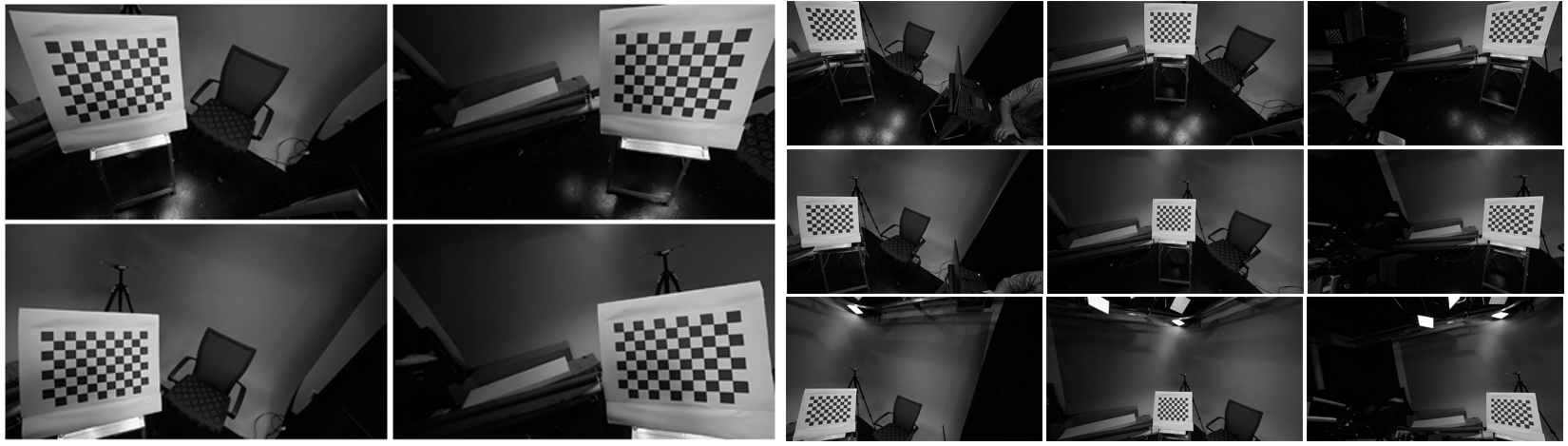

First, you take a series of 13 photos with your DSLR to help the software quantify the curvature of your color lens.

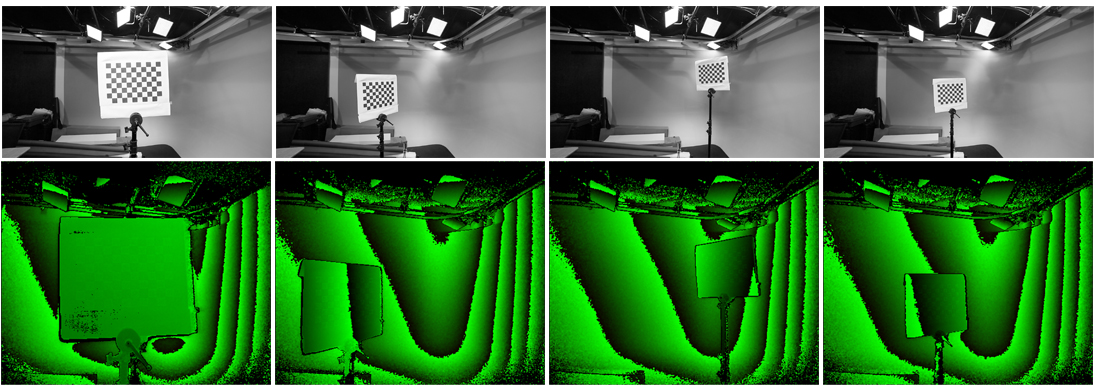

Next, take a series of snaps with both the DSLR and the depth Camera to match up the optics.

We had a little trouble with our first calibration. So we went back and reshot with brighter exposure, more careful focusing, a larger 11x17 checkerboard, more consistent lighting and we started the final set of calibrations closer to the camera. That second calibration worked fine.

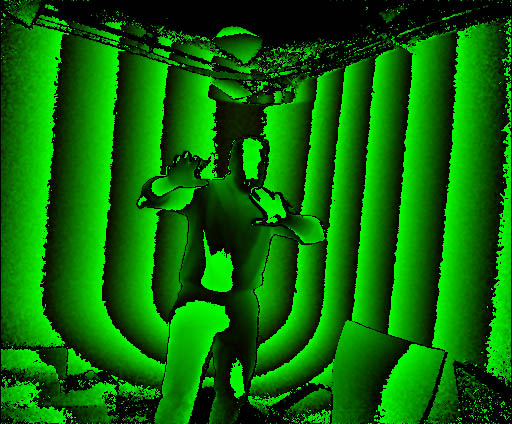

The capture software which only runs on a windows machine is used to capture a sequence of .pngs at roughly 24fps. The frames are relatively low res (512x424) These frames capture the depth of the scene. Here's a sample frame:

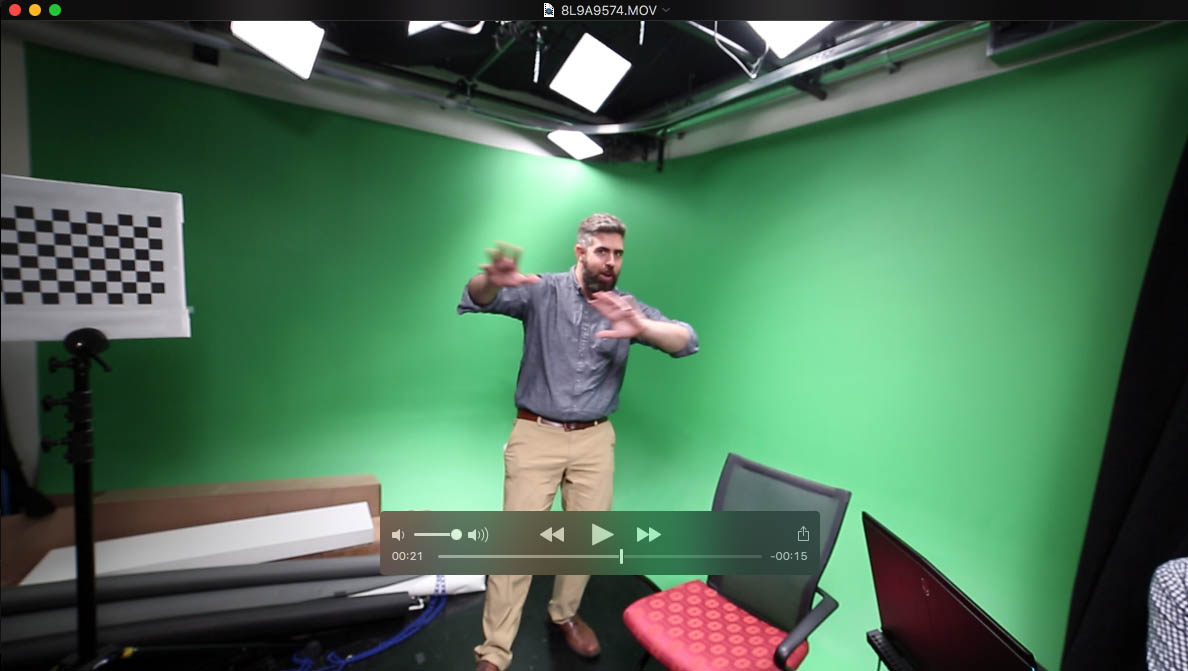

And here's the matching color frame from the DSLR:


Then Depthkit Visualize (Which runs on Mac and Windows) can be used to sync the two streams and combine them into a playable textured mesh.


The result can be cropped and adjusted in a number of ways along the X,Y & Z axis, and then exported in different formats for a wide variety of platforms. Including a .webm file with paired depth and color.




That file can then be referenced with the Javascript library DepthKitJS. To create an in-browser 3D video experience.





Next Steps

  • Shoot more interesting footage
  • Try importing footage into Unity and then Hololens
  • Try combining DepthKit JS with Aframe.io
  • Experiment with other filters and visualizations
  • Try setting up camera arrays
  • Make capture system mobile
  • Try adding a background

Feedback

  • There is some weird occlusion going on in DepthKitJS. When you rotate the video counter clockwise. You can see the fan which is in the foreground become blocked by pixels in the body, which is in the background.

Simple RGBd Demo with Kinnect v1

9/12/16 | 3 hrs

Work:

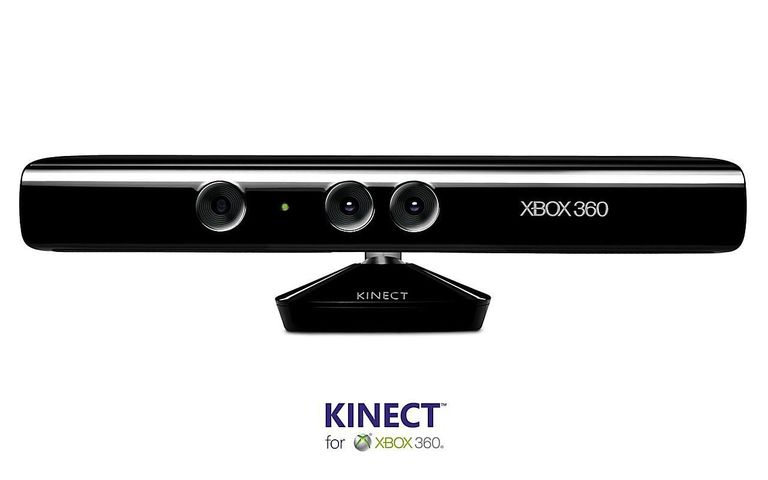

This is a simple screen captured demo using a Kinect sensor bar V1 and RGB-D Viewer.


This test uses an original Xbox Kinect Sensor which detects the depth of a space in real time using an infrared projector, a low-res infrared camera, it then uses a low res camera to color the resulting 3D point cloud.


Next Steps

  • Test DepthKit
  • Try importing into Unity

Feedback

Discussion:
